Casing Equipment Stage Tool Plug Sets

Plug sets for operating both   Type-P and Type-H cementers must be ordered separately from the cementer. The   individual components of each plug set depend on the type of tool to be operated.

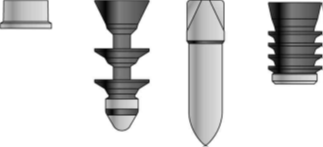

 • A standard plug set for   two-stage cementing consists of the following equipment:

• A shutoff baffle installed on   top of the float collar (for 8-rd and buttress).

• A shutoff plug (for both   Type-P and Type-H cementers).

• A free-fall opening plug   (required for the Type-P cementer; optional for the Type-H cementer).

• A closing plug (for both   Type-P and Type-H cementers).

• A baffle adapter installed one   or more joints above the float collar (for the Type-H cementer) Use of a   baffle adapter is preferred when using a Type-H cementer with a first-stage   bottom plug.

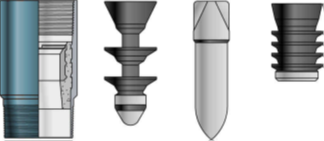

Stage Tool Free-Fall Plug Set with Baffle Adapter
